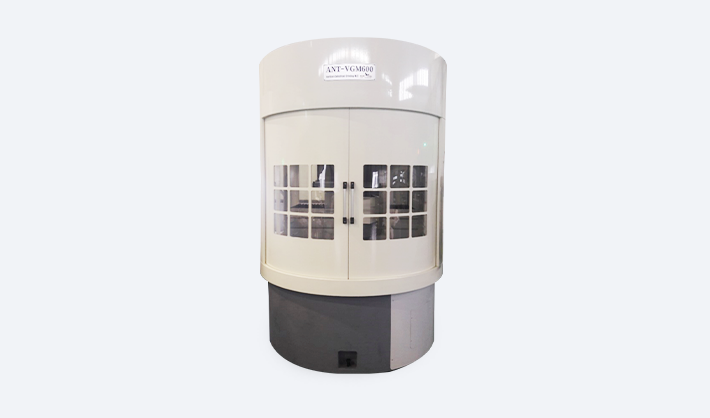

Vertical Grinding Machine[ANT-VGM600B]
High rigidity structure Grinding Machine
- FANUC OiMF-P applied
- Machining range Ø 250 ~ Ø 600

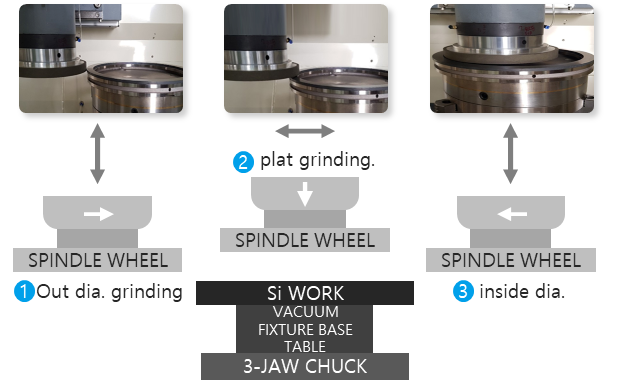

- Complex Machine that can grind ID, OD, Plat
- Large-area machining range of table Ø600
- Spindle, Rotary Table Motor
> ANT-VGM600B SPEC
| Work | Size | Max Ø600, Max 100L | |
| Grinding Wheel | Metal Diamond Wheel | OD: Ø250 | |
| - | |||
| Spindle Unit | R.P.M. | 1,350 RPM (Invertor) | |
| Motor | 5.5KW x 4P x 220V x 60Hz | ||
| Shank | - | ||
| Table Unit | R.P.M. | 0~200 RPM (Servo) | |
| Motor | 3KW AC Servo Motor | ||
| Jig & Fixture | Ø550 Vacuum Jig | ||
| Feed Unit | Z-Axis | Stroke | 300 mm |
| Motor | 5KW AC Servo Motor | ||
| X-Axis | Stroke | 460 mm | |
| Motor | 5KW AC Servo Motor | ||
| Coolant | Tank | 250 ℓ | |
| Pump | 60 ℓ/min | ||
| Main Air Source | 5 Kg/cm² | ||
| Main Power Source | AC220V x 3phase x 60Hz / 25KW | ||
| Control Power | AC220V, DC24V | ||
| Machine Installation Area | W 2,300 x L 2,800 x H 2,900 | ||
