Grinding Center Machine
2023. 1. 25. 13:26ㆍProducts/Machines

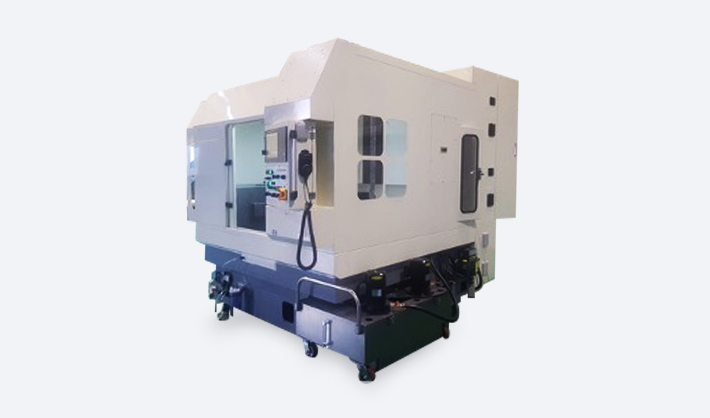

Grinding Center Machine[ANT-GCT 500B/600B]
It can be used to process difficult-to-cut materials such as SiC by solving the problem of cracking when machining with general machines. We have a history of supplying our machines to customers in the SiC processing business.

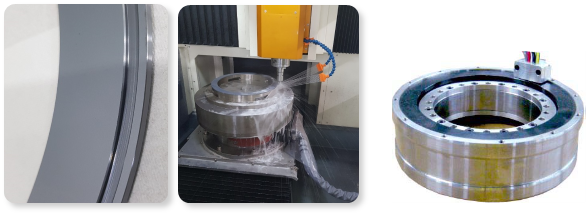

4-axis CNC machine with built-in turntable unit
- FANUC built-in motor turntable configuration
- A complex machine capable of ID, OD and shape grinding
- Excellent connection machining between curved and straight machining
- Support for a product-customized dedicated tool
- Tool diameter: Ø0.2 ~ Ø100 mm
> ANT-GCT500B SPEC
| Processing range | Ø 500 ㎜ | ||
| Stroke | X-Axis (㎜) | 830 | include tool change feed |
| Y-Axis (㎜) | 550 | ||
| Z-Axis (㎜) | 250 | ||
| Feed rate override | X.Y.Z.-Axis (m/min) | 0~10 | |
| B-Axis (RPM) | 0~20 | ||
| Table size | B-Axis (㎜) | Ø540 | can be specified |
| Table live load | B-Axis (Kg) | Max 200 | |
| Precision of axis | X-Axis (㎜) | ±0.005 | |
| Y-Axis (㎜) | ±0.005 | ||
| Z-Axis (㎜) | ±0.005 | ||
| B-Axis | ±5 “ | ||
| Resolution | X.Y.Z-Axis (㎜) | 0.001 | |
| Spindle | 12,000 RPM (Ø 100) | 24,000 RPM (Option) | |
| Clamp Type | Vacuum | ||
| Operation system | X.Y.Z.-Axis | Ball Screw + Servo Motor | |
| Spindle | High Frequency wave | HSK-E40 | |
| B-Axis | Built-In Servo Motor | ||
| Controller | FANUC Oi-MF-Plus | Motion(Option) | |
| Main power | 220V / 60(50)Hz (Down T/R) | ||
| Standard | W x D x H (㎜) | 2,300 x 2,800 x 2,900 | |
