Plat Polishing Machine - Step Polishing

Plat Polishing Machine[ANT-PL550]



It can create high-quality steps in difficult-to-process materials such as Si and SiC.

---

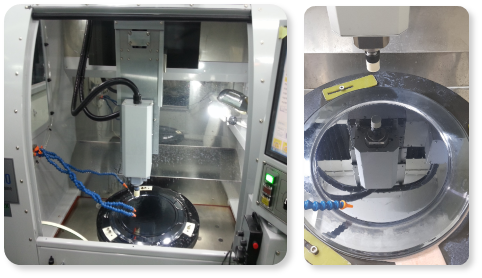

Polishing machine that processes circular products with steps

• PC, NC - SERVO CONTROLLER
• SPINDLE ANGLE ±45ᄋ
• Machining range Ø250 ~Ø500
• VACUUM Table (Option)





> ANT-PL550 SPEC

Control Shaft	Synchronous 5-axis control		Macro Program - Machining time setting
	SERVO MOTOR		YASKAWA Σ7
Machine Body	GC300 Table		metal(casting) gross weight: 2,200kg
Axis motion range	X / Y / Z / Z2 - axis	550mm / 390mm / 250mm / 20mm
	T-axis	90ㅇ (V=25ㅇ/sec)	Worm gear & Servo. Disk Break
	B-axis	Table Rotary.	Add Reducer(5:1) (max: 120rpm)
Spindle Head	Polishing Method	Rotary & Stroke (X, Z Axis Slide)
	Tool press force	Max 5kgf (Tool Clamp)	Collet ER25
	Tool drive method	AC SERVO MOTOR(400W)
	Z2 pressure	Max 60kg/cm² (pneumatic 5bar)	LOADCELL 200kg
	RPM	Max 4,500(3,000)RPM	SERVO - YASKAWA
	Spindle Shaft	Ø20 (C7004-P5)
Tool Change	Manual A.T.C (ISO20)
OP PANEL	M21 - COLOR 12º TFT liquid crystal display
CONTROLLER	Mitsubishi P.L.C 6-Axis Controller
Communication function	RS232C, USB port
Work maximum area/load weight	Ø500mm / 60~80kg
Machine dimensions	1,300 x 2,100 x 2,000 (W*L*H)
Machine Weight	3,500kg



If you have any questions, please feel free to contact us anytime.

E-mail: info@saehannanotech.com
