Micro Drilling Machine - Silicon Electrodes small hole drilling

Micro Drilling Machine[ANT-BSSD500]

Silicon Electrodes small hole drilling

---

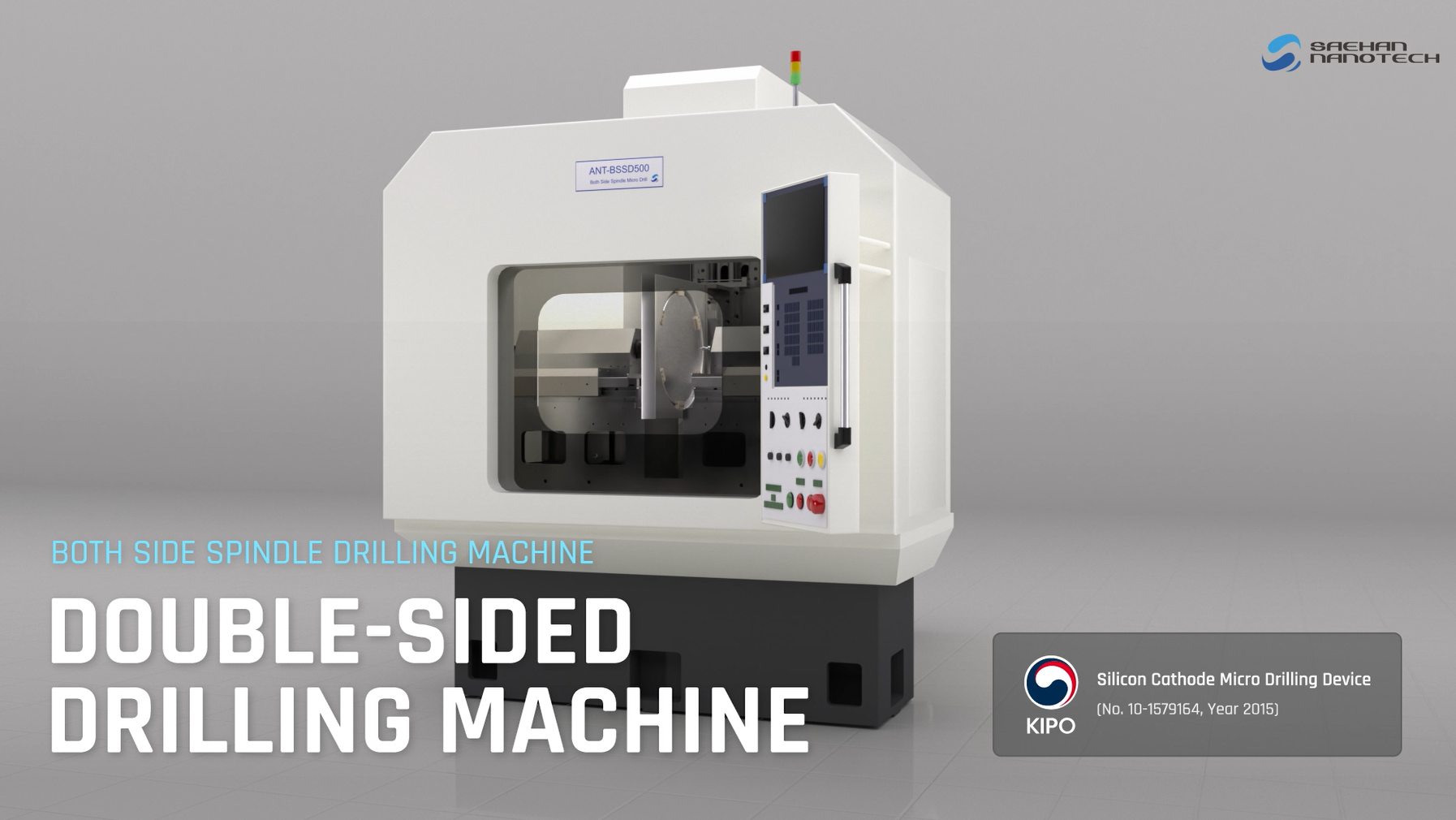

Our machines are highly specialized silicon parts for semiconductors. Both Side Spindle Drilling Machines (Double-sided Drilling Machines) create tiny holes in silicon electrodes.





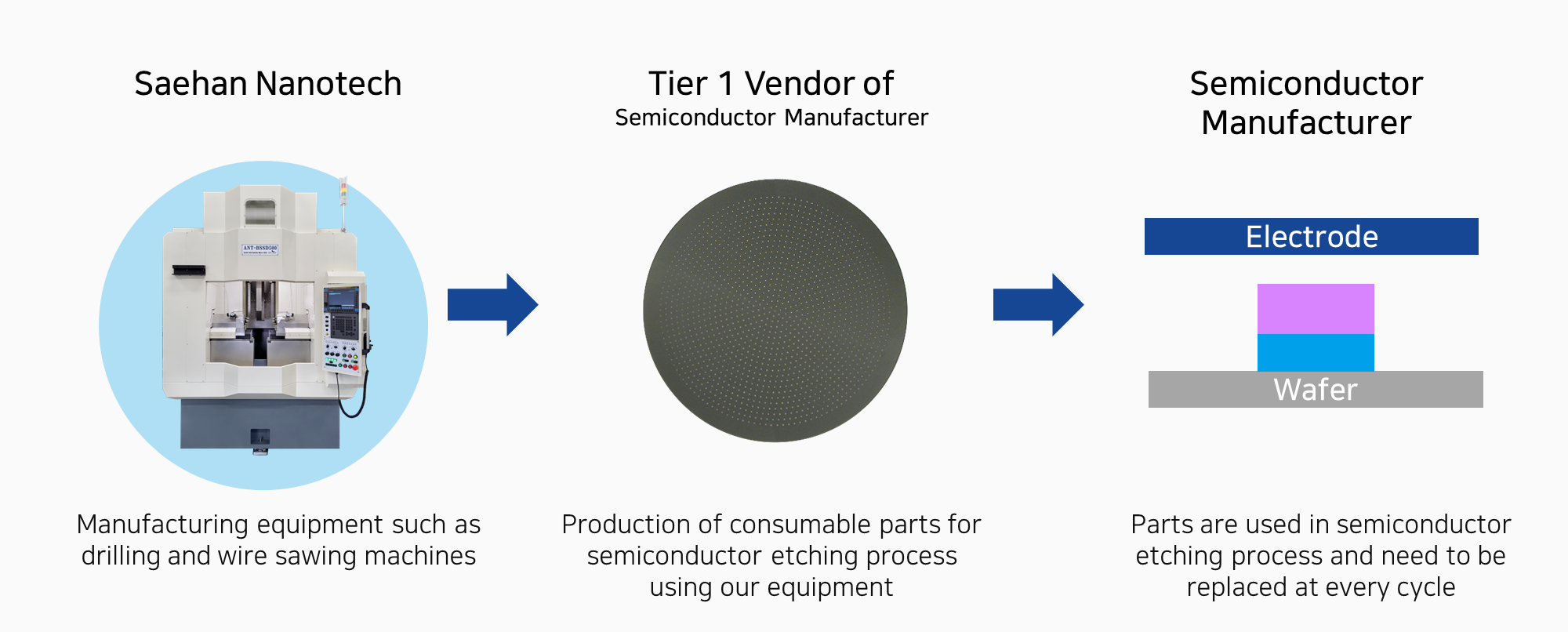

The small hole drilling process

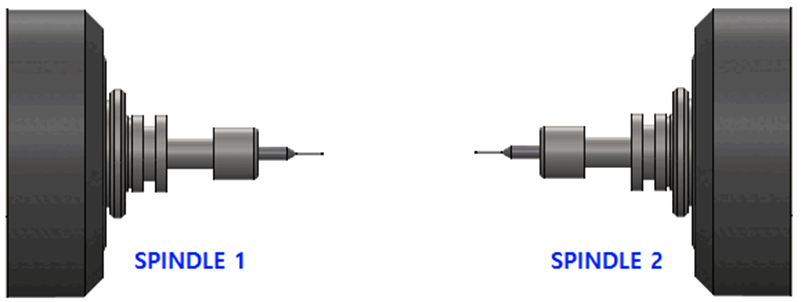

There is a distinctive feature of our machine, which has two spindles attached on both sides. The previous equipment required workers to flip the silicon electrode over after processing one side and then processing the other. This time-consuming process leads to inefficiencies, worker errors, and defects.





Our product solves the problems by drilling holes on both sides simultaneously. Saehan NanoTech's equipment can increase unmanned(automated) processing time, resulting in cost savings on labor, and enhance operational efficiency by up to twice as much. It also allows for a reduction in the defect rate caused by worker negligence.







We continue to innovate our machines, silicon electrode manufacturing processes, and drilling tools. This innovation enables us to create precision gas holes and provide an advanced capability to drill damage-free holes.



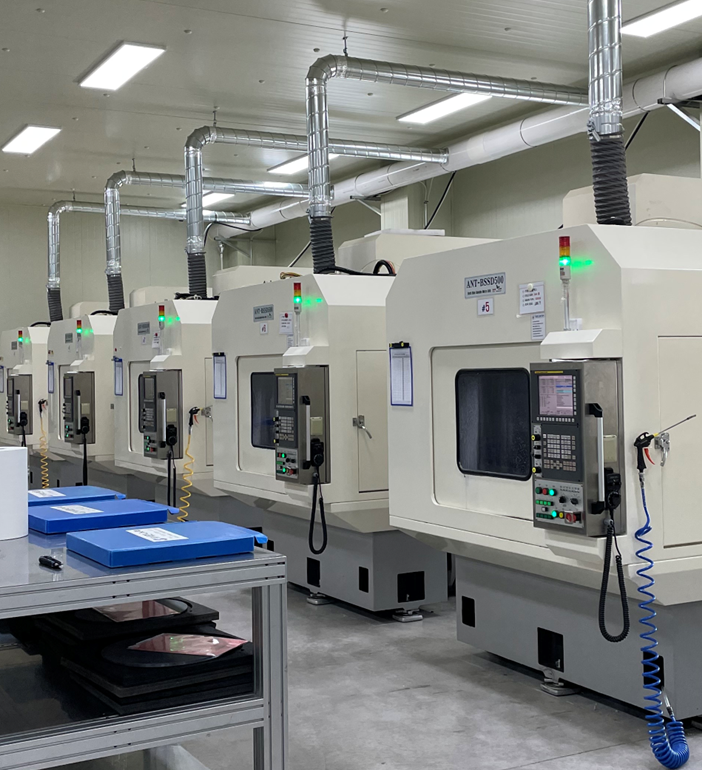

M/C for drilling both sides at the same time

• Prevent hole misalignment
• Improved precision between both holes
• Increase productivity with faster processing time (up to 2x)

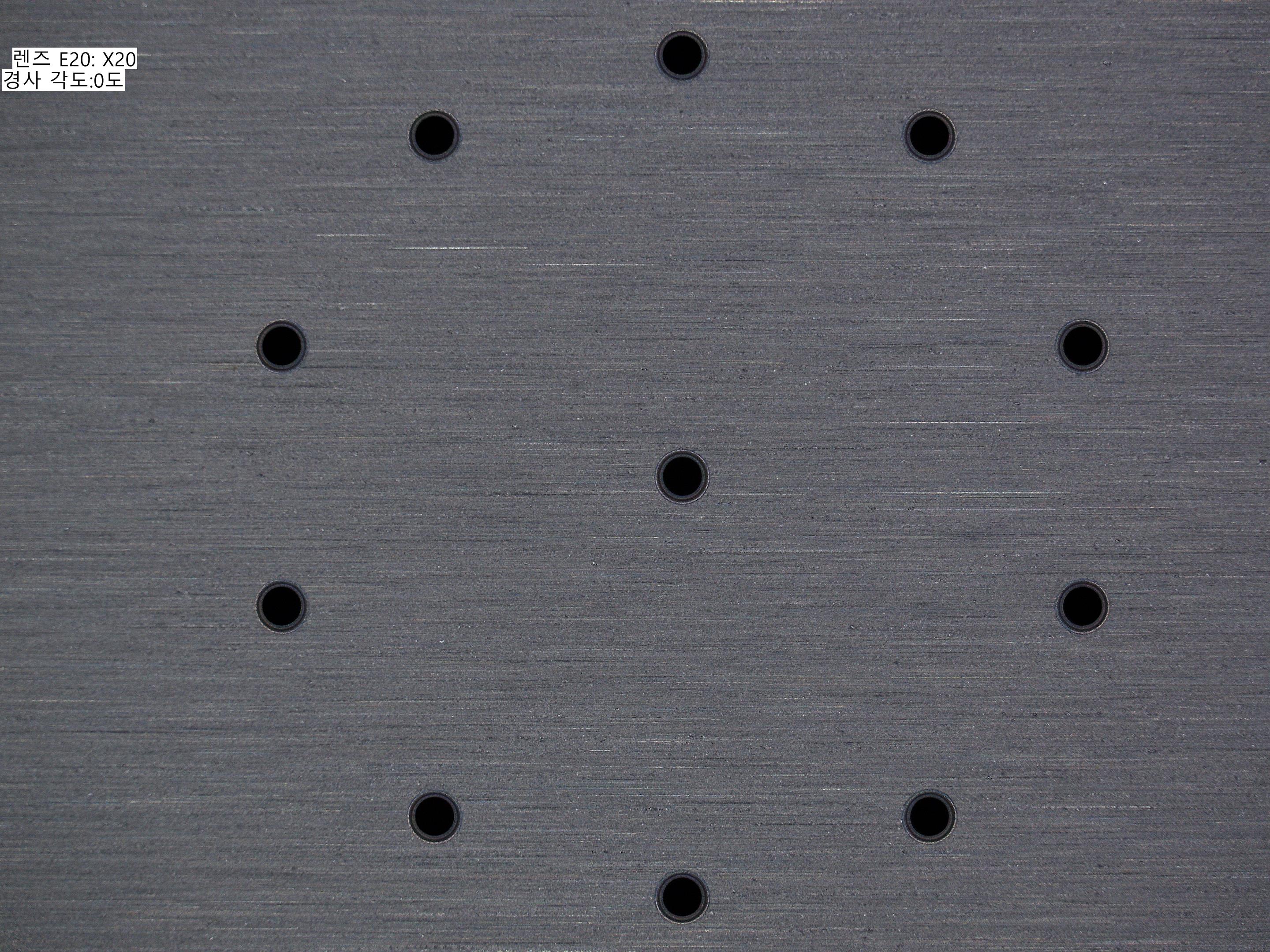

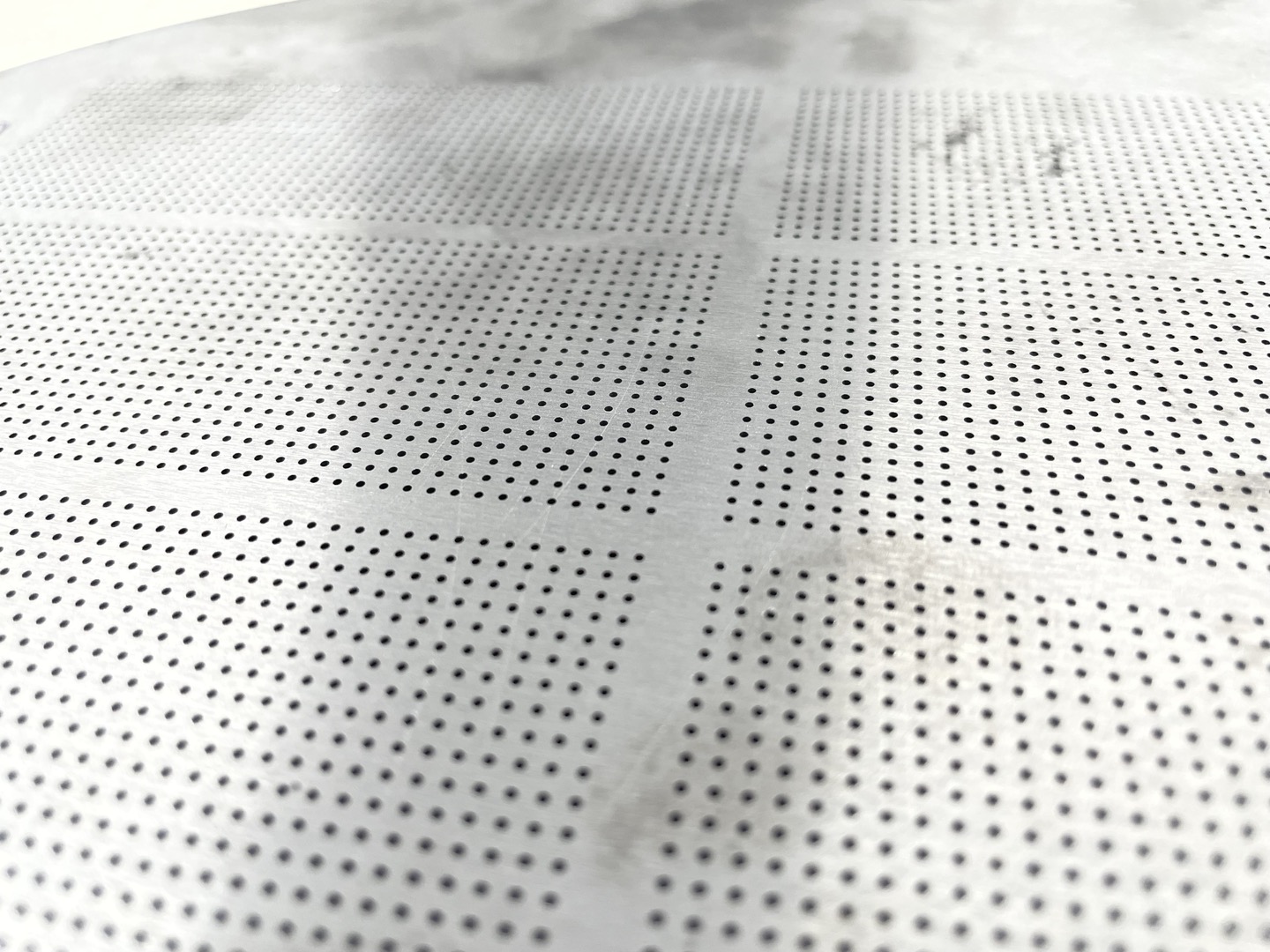

Silicon Electrode Drilling Test Image

Quality

• Concentration between holes is within 30μm → Always keep below 20μm

Processability

• We can drill 3,240 holes of Ø0.45mm size
  - Also, our machine can drill the depth of 18mm holes Ø0.72mm (1,000 hole test completed)

Productivity

• Maximize productivity → 1.5 to 2 x increase in production compared to 1 spindle Machine

Durability

• Securing twice as much conservation as one spindle Machine
• Corresponding to thermal displacement with a symmetrical structure
• The transfer system has a free combination structure that minimizes the coefficient of friction. (V-V Guide)
• Spindle optimization: We developed with a German company to secure competitiveness
  in lifespan, vibration, thermal displacement (Ø62, HSK25, 25,000 RPM)
• The structure that minimizes the effect of product quality even if an error occurs in the position transfer system



Both Side Spindle Drilling Machines

---

Contact

Homepage: www.saehannanotech.com

E-mail: info@saehannanotech.com

Tel: +82-55-586-1331 / +82-70-7791-7052
