Core Drilling Machine
2023. 1. 24. 01:15ㆍProducts/Machines

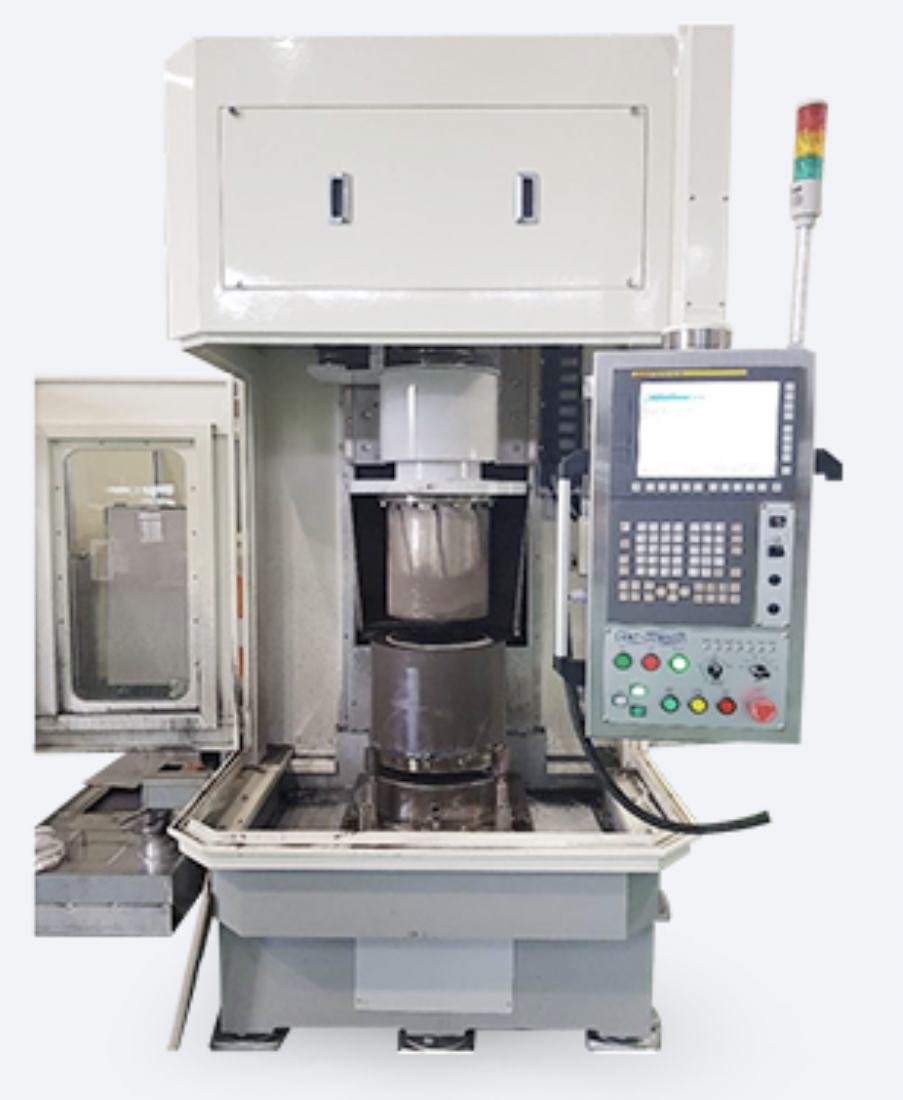

Core Drilling Machine[ANT-SCDM450/500/550]

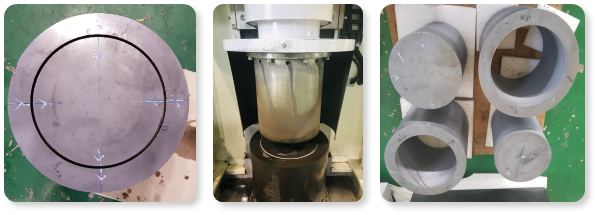

Machine to process ID, OD of sapphire, silicon, quartz ingot
- Machining range (Max Ø 420 x 400 mm)
- High-rigidity casting(GC300) structure for easy maintenance
- N.C Control(FANUC-OiMF)
- Spindle Inverter Motor(Servo 4.4Kw-Option)
- Bonding beam +3-jaw interlocking chuck table
- High rigidity and high torque of the spindle improve work performance
- ID, OD & upper, lower coring thickness deviation within ± 0.1mm
- Use metal, electroplated diamond wheel ( # 80~120 mash )
> ANT-SCDM500 SPEC
| Work Size | Max. Ø400 x 400L | ||
| Tool (Metal Diamond Wheel) |
Diameter | Ø 285 mm | |
| Length | 425 mm | ||
| Spindle Unit | R.P.M. | 0~800 (Variable) | |
| Motor | 5.5Kw x 4P x 220V x 50, 60Hz | ||
| Reduction Ratio | Pulley 1:1.7 | ||
| Feed Unit | Z-Axis | Stroke | 550 mm (Max. 700mm) |
| Motor | 4Kw AC Servo Motor, 3,000rpm | ||
| Ratio | Reducer 1/10, Pulley 1/2 | ||
| Screw | Ball Screw Ø63 x Lead 20 | ||
| Coolant | Tank | 250L | |
| Pump | 170L/min | ||
| Main Air Source | 5kg/cm² | ||
| Main Power Source | AC220V x Ø3 x 60Hz | ||
| Control Power | AC220V, DC24V | ||
| Machine Installation Area | W 2,310 x L 2,550 x H 3,000 (mm) | ||
